H4K20me3 Antibody

Figure 1. ChIP results obtained with the Diagenode antibody directed against H4K20me3
ChIP assays were performed using human HeLa cells, the Diagenode antibody against H4K20me3 (Cat. No. C15410207) and optimized PCR primer pairs for qPCR. ChIP was performed with the “iDeal ChIP-seq” kit (Cat. No. C01010051), using sheared chromatin from 1 million cells. The chromatin was spiked with a panel of in vitro assembled nucleosomes, each containing a specific lysine methylation (SNAP-ChIP K-MetStat Panel, Epicypher). A titration consisting of 0.2, 0.5, 1 and 2 µg of antibody per ChIP experiment was analyzed. IgG (1 µg/IP) was used as a negative IP control.

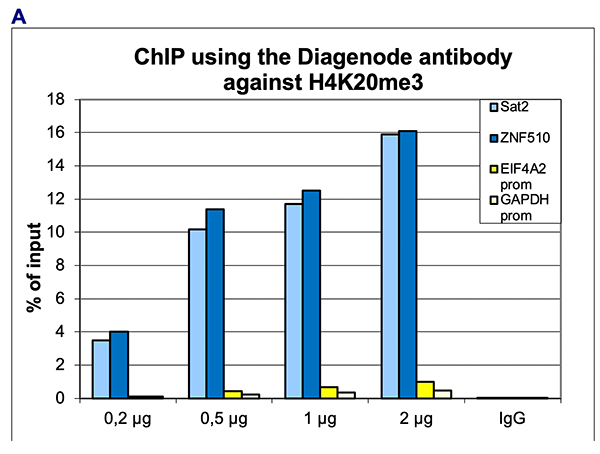

Figure 1A. Quantitative PCR was performed with primers specific for the promoter of the active GAPDH and EIF4A2 genes, used as negative controls, and for the ZNF10 gene and the Sat2 satellite repeat, used as positive controls. The graph shows the recovery, expressed as a % of input (the relative amount of immunoprecipitated DNA compared to input DNA after qPCR analysis).

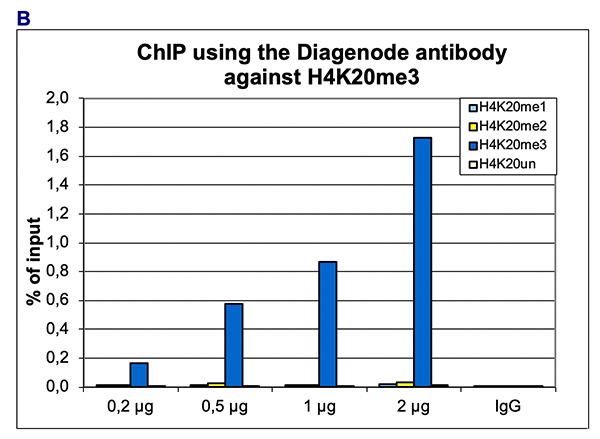

Figure 1B. Recovery of the nucleosomes carrying the H4K20me1, H4K20me2, H4K2me3 and the unmodified H4K20 as determined by qPCR. The figure clearly shows the antibody is very specific in ChIP for the H4K20me3 modification.

A.

Figure 2. ChIP-seq results obtained with the Diagenode antibody directed against H4K20me3

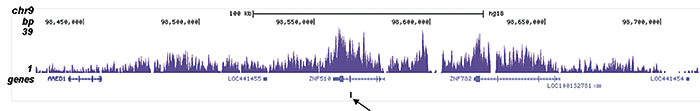

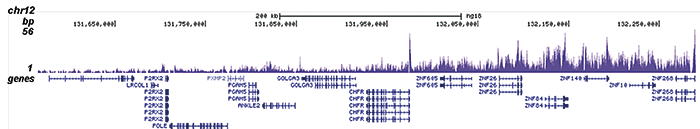

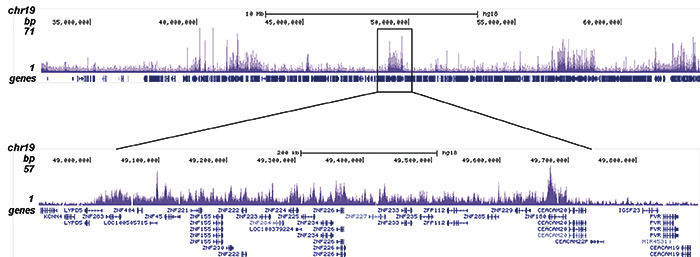

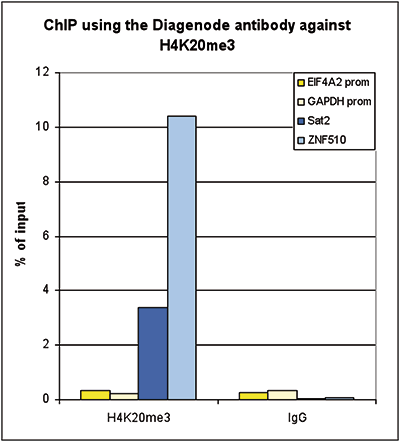

ChIP was performed with 0.5 µg of the Diagenode antibody against H4K20me3 (Cat. No. C15410207) on sheared chromatin from 100,000 K562 cells using the “iDeal ChIP-seq” kit. The IP’d DNA was analysed by QPCR as described above (figure 2A). The IP’d DNA was subsequently analysed on an Illumina Genome Analyzer. Library preparation, cluster generation and sequencing were performed according to the manufacturer’s instructions. The 36 bp tags were aligned to the human genome using the ELAND algorithm. Figure 2B shows the signal distribution along the long arm of chromosome 19 and a zoomin to an enriched region containing several ZNF repeat genes. Figure 2C and D show the enrichment in the telomeric region of chromosome 12, also containing several ZNF repeat genes, and at ZNF510 on chromosome 9, respectively. The position of the amplicon used for ChIP-qPCR is indicated by an arrow.

B.

C.

D.

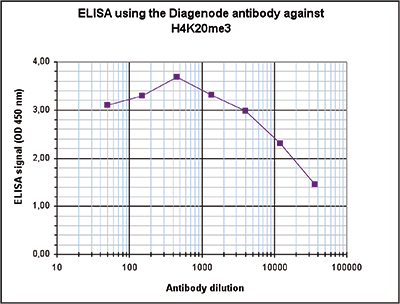

Figure 3. Determination of the antibody titer
To determine the titer of the antibody, an ELISA was performed using a serial dilution of the Diagenode antibody directed against H4K20me3 (Cat. No. C15410207) in antigen coated wells. The antigen used was a peptide containing the histone modification of interest. By plotting the absorbance against the antibody dilution (Figure 3), the titer of the antibody was estimated to be 1:21,700.

A.

B.

Figure 4. Cross reactivity tests using the Diagenode antibody directed against H4K20me3

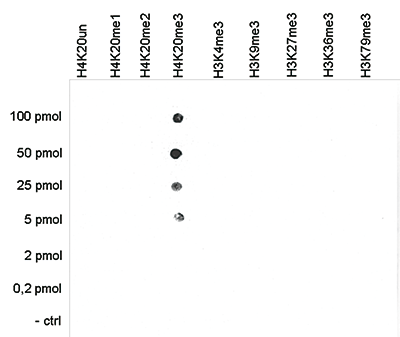

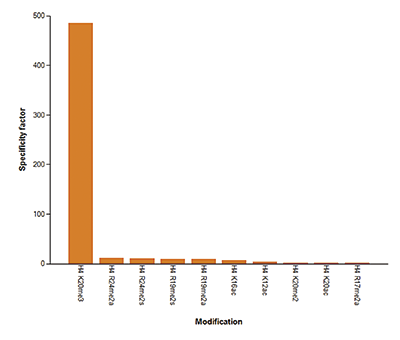

Figure 4A To test the cross reactivity of the Diagenode antibody against H4K20me3 (Cat. No. C15410207), a Dot Blot analysis was performed with peptides containing other histone modifications and the unmodified H4K20. One hundred to 0.2 pmol of the respective peptides were spotted on a membrane. The antibody was used at a dilution of 1:20,000. Figure 4A shows a high specificity of the antibody for the modification of interest. Figure 4B The specificity of the antibody was further demonstrated by peptide array analyses on an array containing 384 peptides with different combinations of modifications from histone H3, H4, H2A and H2B. The antibody was used at a dilution of 1:10,000. Figure 4B shows the specificity factor, calculated as the ratio of the average intensity of all spots containing the mark, divided by the average intensity of all spots not containing the mark.

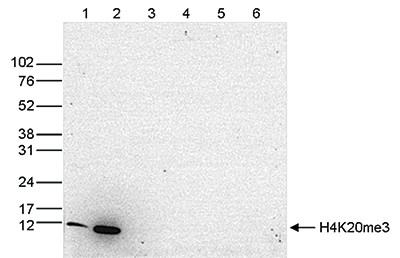

Figure 5. Western blot analysis using the Diagenode antibody directed against H4K20me3
Western blot was performed on whole cell (25 µg, lane 1) and histone extracts (15 µg, lane 2) from HeLa cells, and on 1 µg of recombinant histone H2A, H2B, H3 and H4 (lane 3, 4, 5 and 6, respectively) using the Diagenode antibody against H4K20me3 (Cat. No. C15410207). The antibody was diluted 1:1,000 in TBS-Tween containing 5% skimmed milk. The position of the protein of interest is indicated on the right, the marker (in kDa) is shown on the left.

Figure 6. Immunofluorescence using the Diagenode antibody directed against H4K20me3
HeLa cells were stained with the Diagenode antibody against H4K20me3 (Cat. No. C15410207) and with DAPI. Cells were fixed with methanol and blocked with PBS/TX-100 containing 5% normal goat serum and 1% BSA. The cells were immunofluorescently labeled with the H4K20me3 antibody (left) diluted 1:500 in blocking solution followed by an anti-rabbit antibody conjugated to Alexa488. The middle panel shows staining of the nuclei with DAPI. A merge of the two stainings is shown on the right.
